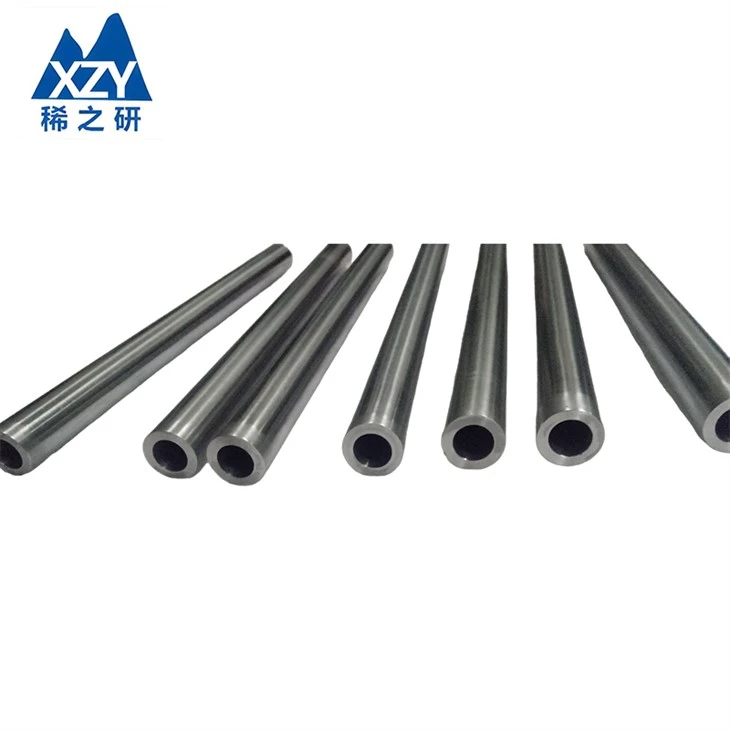

Pure Molybdenum Tube
2.Catalog: Molybdenum product
3.Material: Pure molybdenum
4.Grade: MO-1
5.Purity: Mo≥99.95%
6.Density: 10.2g/cm3
7.Shape: Tube, Pipe, Tubular
8.Surface: Silver gray metallic luster, Polished, Ground finished
9.Application: High temperature furnace components, Thin film technology, Electronic, Medical
10.Production technology: Powder metallurgy, Sintering, Forging, Heat treatment, Machining
11.Place of Origin: Luoyang, China
Pure Molybdenum Tube is a tubular material made of high-purity molybdenum (Mo), primarily used in high-temperature furnace supports, thermocouple protection tubes, electron tube grids, and thin-film deposition equipment.
Product Specification
|
Pure Molybdenum Tube Specification |
||
|
Outer Diameter (mm) |
Inner diameter (mm) |
Length (mm) |
|
7 |
4 |
100 |
|
9 |
5 |
500 |
|
12 |
8 |
1000 |
|
50 |
40 |
1200 |
|
145 |
125 |
3000 |
Product Advantages
High Temperature Stability
Melting point 2610℃, density 10.2 g/cm³. Maintains stable mechanical strength and shape at high temperatures, suitable for high-temperature furnace supports and hot zone components.
Excellent Mechanical Strength
Tensile strength at room temperature is 650 MPa, and at 1000℃ it remains at 220 MPa, with elongation of 25% and 20% respectively. Powder metallurgy combined with heat treatment creates a uniform microstructure, ensuring no deformation under thermal expansion and external forces.
Precision Dimensions and Smooth Surface
Diameter 7–145 mm, length 100–3000 mm, tolerance ±0.03–0.2 mm, Ra ≤0.8–3.2 μm. Uniform internal structure, suitable for high-precision assembly.
Stable Thermoelectric Properties
Resistivity ranges from 0.054 Ω·mm²/m (20℃) to 0.571 Ω·mm²/m (2000℃). The uniform internal structure of the metal ensures linear changes in thermoelectric properties, making it suitable for electron tube and thin-film deposition applications.
Multi-Process Customization Capabilities
Deep-hole drilled tubes, sintered tubes, welded tubes, rolled tubes, and drawn tubes are available. Mechanical and surface properties can be adjusted by adjusting powder purity, sintering density, and processing methods.
Product Application
Aerospace
Serving as nozzle linings and structural supports, it withstands high-temperature gas flow and maintains its shape.
Nuclear Energy
Used as fuel assembly supports and shielding tubes, precisely positioning nuclear materials and conducting heat.
Electronics & Semiconductors
Serving as thermocouple protection tubes and thin-film deposition tubes, protecting sensor elements and ensuring uniform thin-film deposition.
High-Temperature Industrial Furnaces
Used as heating element sleeves and support rods, supporting furnace components and conducting heat.
Optics & Precision Instruments
Serving as support rods and positioning tubes, maintaining precise spacing and position between components.
Our workshop
Our Products
|
Molybdenum products |
Molybdenum rod, bar, wire, electrodes; Molybdenum sheet, plate, foil, strip, disc; support rod Molybdenum crucible, molybdenum boat, molybdenum container/ box, molybdenum tube; Molybdenum heating elements for vacuum furnace and high temperature furnace (screen, threaded rod, screw, bolts, nuts, rivets ect ); Molybdenum machining parts customized according to required drawings. |
|
Molybdenum alloy |
TZM alloy, MoLa alloy, MoW alloy, ect |
|
Tungsten products |
Tungsten rod, bar, wire; Tungsten plate, sheet, foil, disc; Tungsten crucible, tungsten boat/container, tungsten tube; Tungsten heating element for vacuum furnace and high temperature furnace. Tungsten machining parts customized according to required drawings. |
|
Tungsten alloy |
WCu alloy, WNiFe, WNiCu heavy alloy, WAg alloy, ect, |
|
Tungsten electrodes |
WTh, WCe, WLa, WZr, WY, Pure W ect. |
