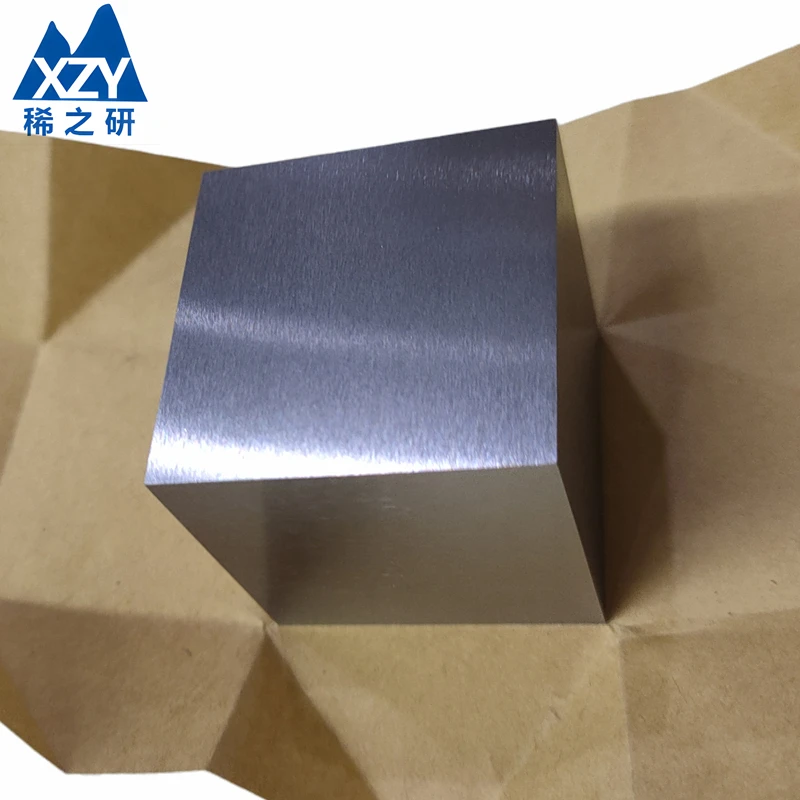

Pure Tungsten Block
2. Catalog: Tungsten product
3. Material: Tungsten
4. Purity: ≥99.95%
5. Grade: W1
6. Density: ≥18.5g/cm³
7. Shape: Block, Cube, Cubic, Square, Rectangular, Cylinder, Ingot, Brick
8. Production Process: Powder metallurgy, Sintered, Forged, Rolled ect.
9. Surface: Chemical cleaned, Polished, Grinding, Ground finish.
10. Application: Counterweight, Target, Electric light source parts, ect.
11. Standard: ASTM B760
The Pure Tungsten Block is a solid block material made of pure tungsten material with a purity of 99.95% or higher. It is generally used in industrial fields with high temperature, high density and high strength requirements.
Applications
Radiation Protection
Due to its high density and atomic number, high-purity tungsten blocks can effectively shield various types of radiation, especially in nuclear energy, radiotherapy, and radiation detection fields. Tungsten blocks are widely used in radiation protection applications, such as preventing radiation leakage in nuclear reactors, X-ray machines, and particle accelerators.
Aerospace
In aerospace, Pure Tungsten Block is used in engine parts, heavy counterweights, and high-temperature materials. Its ability to withstand extreme heat and thermal shock makes it highly suitable for aerospace applications.
Electronics and Electrical Industry
High-purity tungsten blocks are widely used to produce electronic devices, especially components designed to operate in high-temperature and high-pressure environments. These blocks are used in manufacturing vacuum tubes, electrical contacts, bulb electrodes, and more.
Metallurgy and Metal Processing
Thanks to its high melting point and oxidation resistance, tungsten plays a crucial role in high-temperature metal smelting processes, particularly in the processing of refractory metals like titanium and aluminum alloys.
Product Specification
|
Pure Tungsten Block Specifications |
||
|
Product Name |
Dimensions (L*W*H) (mm) |
Weight (kg/pcs) |
|
1 inch cube |
25.4*25.4*25.4 mm |
0.296 kg/pcs |
|
1.5 inches cube |
38.1*38.1*38.1 mm |
1 kg/pcs |
|
2 inches cube |
50.8*50.8*50.8 mm |
2.5 kg/pcs |
|
2.5 inches cube |
63.5*63.5*63.5 mm |
4.74 kg/pcs |
|
1 kg cube |
38.1*38.1*38.1mm |
1 kg/pcs |
|
2kg cube: |
47*47*47 mm |
2 kg/pcs |
|
6.5 mm cube |
6.5 * 6.5 * 6.5mm |
0.0053 kg/pcs |
|
10mm cube |
10*10*10 mm |
0.0193 kg/pcs |
|
12.7mm cube |
12.7*12.7*12.7mm |
0.04 kg/pcs |
|
20mm cube |
20*20*20mm |
0.0154 kg/pcs |
|
51mm cube |
51*51*51mm |
2.56 kg/pcs |
Product Property
|
Pure Tungsten Block Properties |
|
|
Chemical symbol |
W |
|
Atomic number |
74 |
|
Atomic weight |
183.85 |
|
Purity |
≥99.95% |
|
Density /g·cm-3 |
19.254 g/cc |
|
Crystal structure |
body-centered cubic (BCC) |
|
Melting point |
3410°C (+ 20°C) |
|
Boiling point |
5900°C |
|
Specific heat |
0.14 kJ/kg x K at 20°C |
|
Specific latent heat of fusion |
209 kJ/kg (Estimate value) |
|
Thermal conductivity |
129 W/m x K at 20°C |
|
Evaporation heat |
444 J/g |
|
Electrical resistivity |
5.5 μΩ/cm at 20°C |
|
Temperature coefficient of resistivity |
0.00482 Ω/ΩK |
|
Superconductivity temperature |
0.016 K |
|
Critical temperature/K |
13400±1400 |
|
Critical pressure /Pa |
(3.37±0.85)*108 |
|
Elasticity modulus /GPa |
400 |
|
Coefficient of thermal expansion/K-1 |
4.5×10-6 |
Product Packaging
The products will be packed in standard export three-ply plywood cases or carton
- Plastic shock absorption foam is tightly filled in the box
- Place desiccant in the box
- Small size will be vacuum-packed
