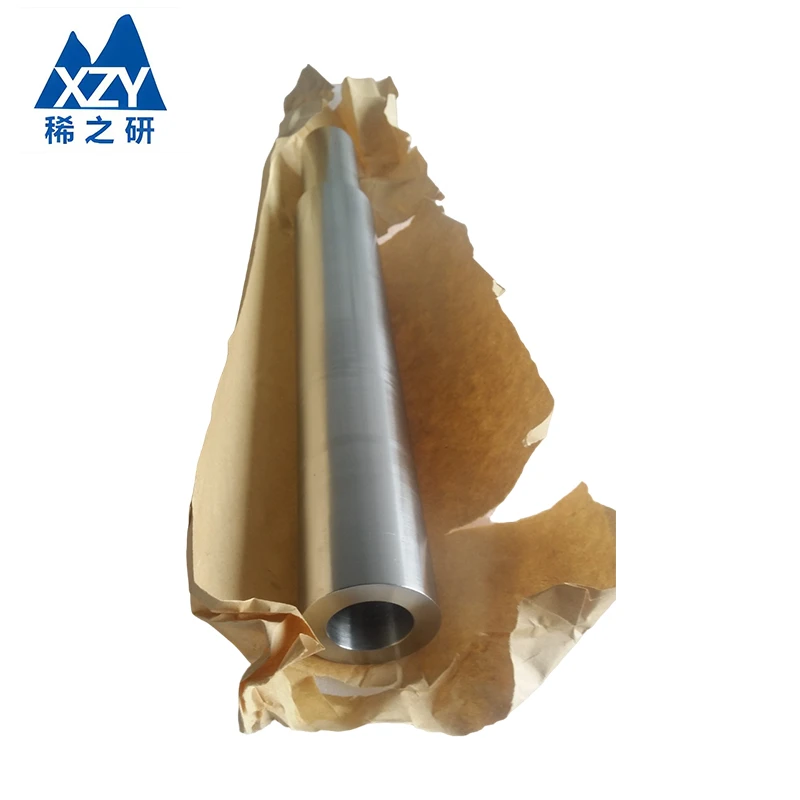

Pure Tungsten Tube
2. Catalog: Tungsten product
3. Material: High Purity tungsten
4. Purity: W≥99.95%
5. Grade: W1
6. Density: 18.5g/cm³~19.2 g/cm³
7. Shape: Tube, Pipe, Round
8. Specification: Φ(6.0~200)mm×Φ(3.0~180)mm×(50~400)mm

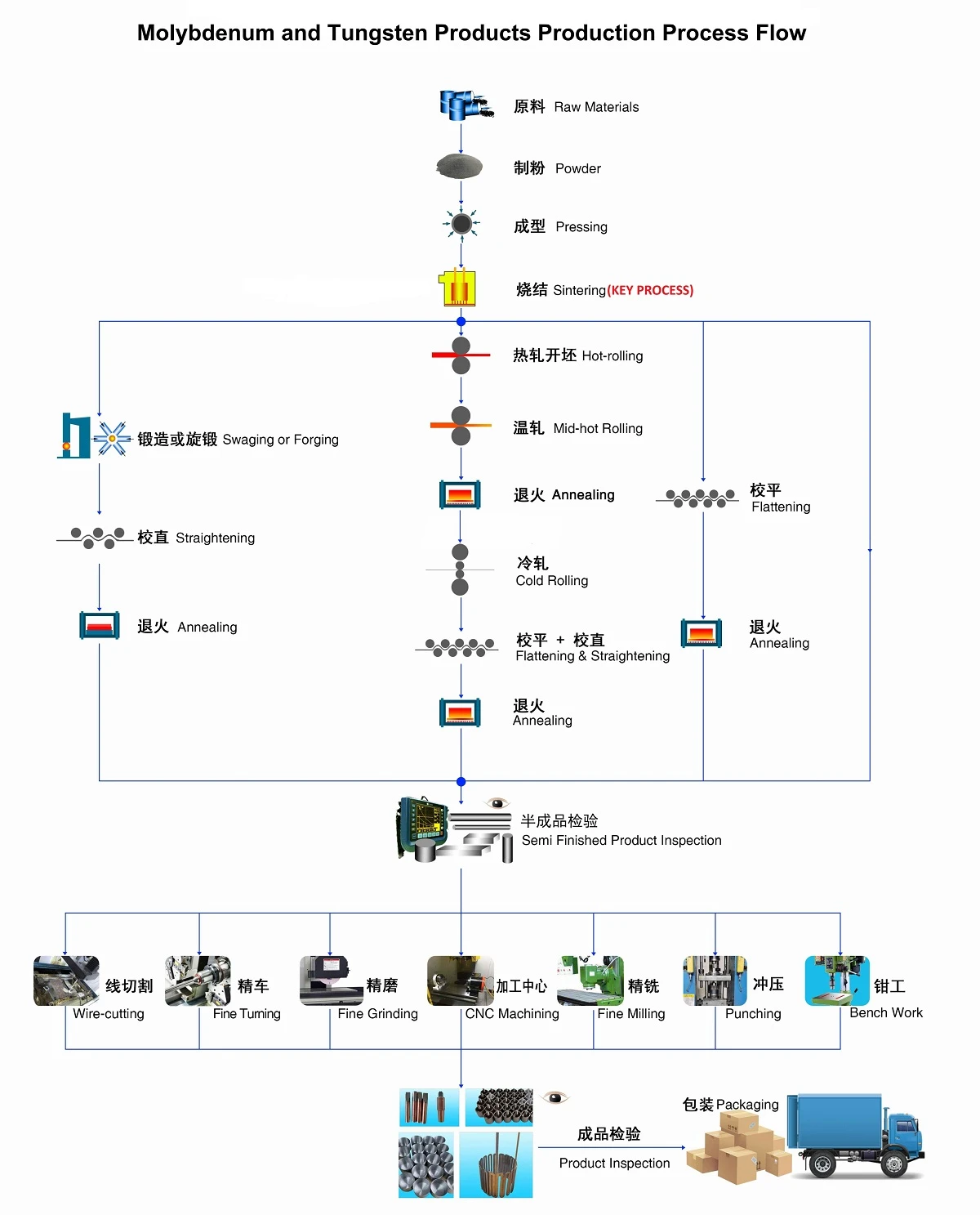

9. Production Process: Sintering, Forging, Machining
10. Application: High temperature furnace, Sapphire crystal growing furnace, Quartz sintering furnace
11. Standard: ASTM B760
Pure tungsten tube is a high-purity (≥99.95% W) refractory metal component designed for extreme temperature, vacuum, and corrosive environments, widely used in furnaces, semiconductor equipment, and aerospace systems.
Features
Ultra-High Temperature Resistance
With a melting point up to 3422°C, the tube maintains structural integrity and performance in extreme heat environments.
High Density & Strength
Density up to ~19.3 g/cm³ ensures excellent mechanical strength and makes it ideal for shielding and high-load applications.
Low Thermal Expansion
Minimizes deformation under thermal cycling, ensuring dimensional stability in precision applications.
Corrosion Resistance
Resistant to most acids and harsh environments, suitable for vacuum and chemical processing systems.
Product Specification
|
Pure Tungsten Tube Specification |
|||||
|
Surface |
Diameter (mm) |
Diameter Tolerance (mm) |
Length (mm) |
Length Tolerance (mm) |
Roughness (μm) |
|
Forging / Rotary Swaging |
Φ1.0～Φ80 |
±1～±2 |
10～3000 |
±1～±2 |
/ |
|
Lathe Turning |
Φ1.0～Φ80 |
±0.01～±0.05 |
10～3000 |
±0.01～±1 |
Ra≤1.6 |
|
Ground Finished/ Grinding |
Φ1.0～Φ80 |
±0.01～±0.05 |
10～3000 |
±0.01～±1 |
Ra≤0.8 |
Product Chemical Composition
|
Pure Tungsten Tube Chemical Composition |
|||
|
Grade |
Tungsten content |
Impurity elements content |
|
|
Total content |
Each element content |
||
|
W1 |
≥99.95% |
≤0.05% |
≤0.01% |
FAQ
Can you customize dimensions and tolerances?
A: Yes, we provide full customization including outer diameter, inner diameter, length, wall thickness, and precision tolerances based on your technical drawings or requirements.
What surface finishes are available?
A: Available finishes include sintered, polished, and machined surfaces depending on the application and required surface roughness.
What is the typical lead time?
A: Lead time depends on order quantity and specifications, but standard sizes are typically delivered within 2–4 weeks.
